Autres diagrammes
801-000
Body in white with Lid Wing Doors 924 1976-79
801-005
Side member / Heat shield 924 1976-79
801-010
Body front section 924 1976-79
801-015
Side section 924 1976-79
801-020
Transmission carrier / Boot floor plate / Roof 924 1976-79
801-025
Wing 924 1976-79
802-000
Bumper without Impact absorber 924 1976-79
802-005
Bumper with Impact absorber 924 1976-79
803-000
Font Lid / Actuator / Lid lock 924 1976-79
803-005
Rear lid with Rear window 924 1976-79
804-000
Door 924 1976-79
804-005
Door / Door lock / Installation parts 924 1976-79
804-010
Installation parts / Door window glass / Power windows 924 1976-79
805-000
Window glazing 924 1976-79
806-000
Pop-up headlight 924 1976-79
807-000
Linings / Carpet - FRONT - 924 1976-79
807-001
Sound absorber / Left-hand drive (LHD) 924 Turbo 1976-79
807-005
Linings 924 1976-79
808-000
Front seat / Complete / Seat cover 924 1976-79
808-001
Front seat / Single parts 924 1976-79
808-005
Back seat / Complete 924 1976-79
808-010
Back seat / Single parts 924 1976-79
809-000
Dashboard 924 1976-79
809-005
Door mirror / Interior mirror / Sun visor 924 1976-79
809-010
Luggage compartment cover 924 1976-79
810-000
Trim frame / Insignias 924 1976-79
811-000
Lifting roof (M650) 924 1976-79
812-000
Seat belt 924 1976-79
813-000
Heating / Ventilation / Heat exchanger 924 1976-79
813-005
Air vent / Cover Air hose 924 1976-79
813-010
Air vent / Air hose / Right-hand drive - M573 Air conditioner - 924 1976-79
813-015
Air vent / Air hose / Left-hand drive - M579 - 924 1979
813-025
Heating - M573 Air conditioner - 924 1979
813-030
Air conditioner / Left-hand drive - M573 - 924 >>1979
813-035
Air conditioner / Right-hand drive - M573 Air conditioner - 924 >>1978

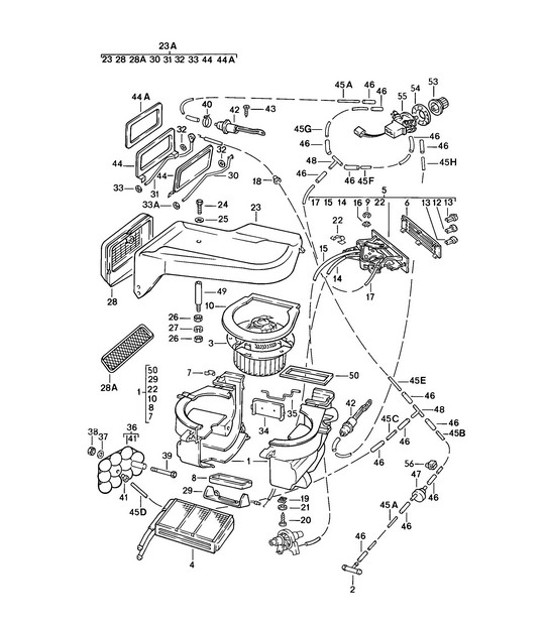

Chauffage / Conduite à gauche - M573 Climatisation - 924 >>1978 - PORSCHE
Cliquez sur les numéros d'image pour afficher les informations sur le produit
813-020
