Porsche > Diagrams > Cayenne 9PA1 (957) 2007-2010 > Transmission >

Tiptronic / Atf cooler / Atf lines (PR:G0R, Tiptronic S) Cayenne 9PA1 (957) 2007-10

Tiptronic / Atf cooler / Atf lines (PR:G0R, Tiptronic S) Cayenne 9PA1 (957) 2007-10 - PORSCHE

Click the image numbers to view product info

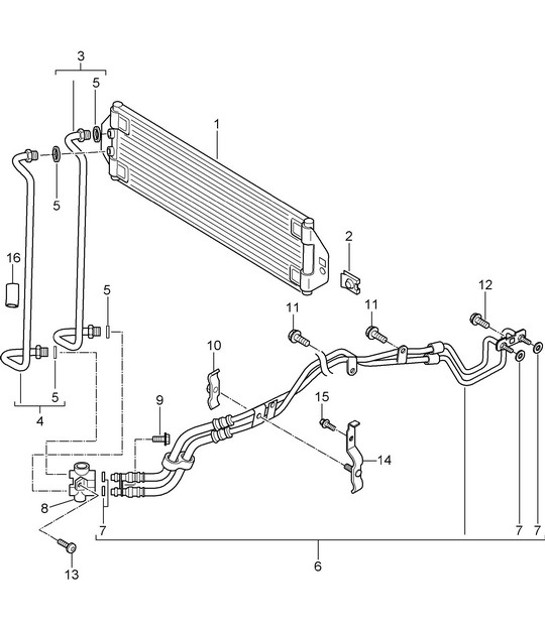

Diagram 360-000 Porsche Cayenne 9PA1 (957) 2007-2010 Transmission SKU: 95530701700, atf cooler only in conj. with: oil pipe 955.307.172.02 955.307.171.02 see technical information service group 3 kd-nr.3860 76 / 09 f >> 9p-ala51 583,SKU: 95530701703, atf cooler only in conj. with: oil pipe 955.307.172.03 955.307.171.03 see technical information service group 3 kd-nr.3860 76 / 09 f 9p-ala51 584>>,SKU: 95530701701, atf cooler,SKU: 95530701703, atf cooler only in conj. with: oil pipe 955.307.172.01 955.307.171.01 see technical information service group 3 kd-nr.3860 76 / 09,SKU: 95530701703, atf cooler only in conj. with: oil pipe 955.307.172.04 955.307.171.04 see technical information service group 3 kd-nr.3860 76 / 09 SKU: N0126483, retaining washer 8 SKU: 95530717206, oil return line only in conj. with: atf cooler 955.307.017.00 see technical informationservice group 3 kd-nr.3860 76 / 09 f >> 9p-ala51 583,SKU: 95530717207, oil return line with: bolt with washer only in conj. with: atf cooler 955.307.017.03 see technical information service group 3 kd-nr.3860 76 / 09 f 9p-ala51 584>>,SKU: 95530717250, oil return line,SKU: 95530717205, oil return line only in conj. with: atf cooler 955.307.017.00 see technical information service group 3 kd-nr.3860 76 / 09,SKU: 95530717208, oil return line with: bolt with washer only in conj. with: atf cooler955.307.017.03 see technical information service group 3 kd-nr.3860 76 / 09 SKU: 95530717106, oil pipe supply only in conj. with: atf cooler 955.307.017.00see technical information service group 3 kd-nr.3860 76 / 09 f >> 9p-ala51 583,SKU: 95530717107, oil pipe supply with: bolt with washer only in conj. with: atf cooler 955.307.017.03 see technical information service group 3 kd-nr.3860 76 / 09 f 9p-ala51 584>>,SKU: 95530717150, oil pipe supply,SKU: 95530717101, oil pipe supply only in conj. with: atf cooler 955.307.017.00 see technical information service group 3 kd-nr.3860 76 / 09,SKU: 95530717108, oil pipe supply with: bolt with washer only in conj. with: atf cooler 955.307.017.03 see technical informationservice group 3 kd-nr.3860 76 / 09 SKU: 95530729200, o-ring SKU: 95530729200, o-ring SKU: 95530729200, o-ring SKU: 95530729200, o-ring SKU: 95530707321, oil pipe (complete),SKU: 95530780150, oil pipe supply,SKU: 95530780151, oil pipe return line,SKU: 95530707330, oil pipe (complete) SKU: N90666001, o-ring SKU: N90666001, o-ring SKU: N90666001, o-ring SKU: 95530702701, thermostat,SKU: 95530702702, thermostat SKU: N90842402, hexagon head bolt (combi) SKU: 95530721101, bracket SKU: N10082911, hexagon head bolt (combi) SKU: N10082911, hexagon head bolt (combi) SKU: N10545402, hexagon head bolt (combi) SKU: N10451404, hexagon socket flat head bolt SKU: 94830714711, bracket SKU: PAF008124, torx screw SKU: N10722501, distance piece 360-000
