Coolant cooling system / Coolant expansion tank (Model: CDUD,CTBA, CTBB,CTBC) 95B.1 Macan 3.0L Diesel 2014-18 - PORSCHE

Click the image numbers to view product info

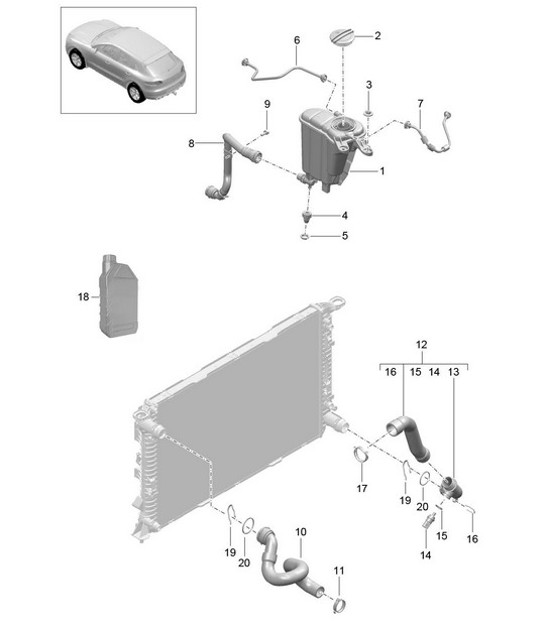

Diagram 105-050 Porsche Macan (95B) MK1 (2014-2018) EngineSKU: PAB121405, coolant expansion tankwith heat shieldSKU: 95810644700, coverSKU: N90570803, hex. nut with washerSKU: 8K0129669, grommetSKU: 8R0121585, grommetSKU: 95B122447F, breather lineSKU: 95B121447F, breather lineSKU: 95B121049G, coolant pipeSKU: N10082912, bolt, hex. hd. (combi.) self-lockingSKU: 95B122101B, coolant hoseSKU: 99951266509, spring band clampSKU: 95B121109B, coolant hoseSKU: -, coupling use item: pos.10SKU: 95510612501, temperature sensorSKU: N90316801, o-ringSKU: 95510614300, retaining springSKU: N90926501, spring band clampSKU: 00004330515, coolant additive,SKU: 00004330516, coolant additive,SKU: 00004330564, cleaning solutionSKU: 4E0121142, retaining spring coolant pipeSKU: 4E0121142, retaining spring coolant pipeSKU: N90933101, o-ringSKU: N90933101, o-ring105-050
NoPart NoDescNoteModel
1PAB121405Coolant expansion tank
with heat shield
295810644700Cover
3N90570803hex. nut with washerM6
48K0129669Grommet
58R0121585Grommet
695B122447FBreather line
795B121447FBreather line
895B121049GCoolant pipe
9N10082912bolt, hex. hd. (combi.)
self-locking
M6X16
1095B122101BCoolant hosefeed
1199951266509Spring band clamp
1295B121109BCoolant hosereturn
13-Coupling
Use item: POS.10
1495510612501Temperature sensor
15N90316801O-ring19,6X3,65
1695510614300retaining spring
17N90926501Spring band clamp47X12
1800004330515Coolant additive1.0 Ltr.
1800004330516Coolant additive20ltr.
1800004330564Cleaning solution20ltr.
194E0121142retaining spring
Coolant pipe
20N90933101O-ring38X4
