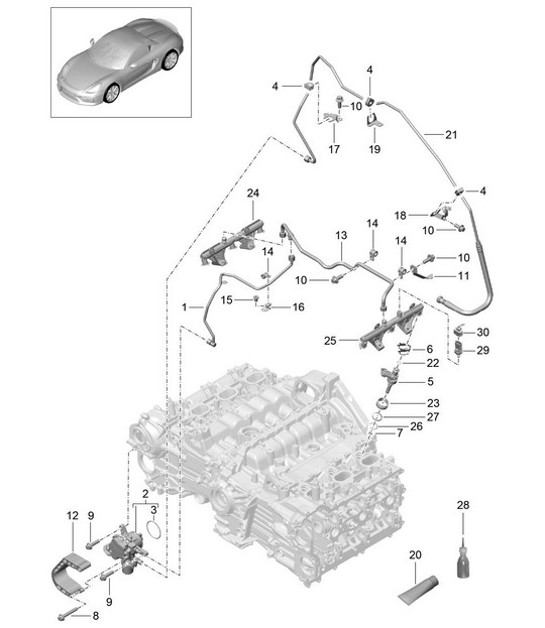

Fuel collection pipe / High pressure pump 981.SP Boxster Spyder 2016

Other diagrams

replacement engine without drive plate tiptronic without flywheel manual transmission for 987 Boxster / Boxster S 2005-08

replacement engine without drive plate tiptronic without flywheel manual transmission without compressor for 986 Boxster 1997-04

Replacement engine 981 Boxster / Boxster S 2012-2016

Replacement engine 981.SP Boxster Spyder 2016

Replacement engine 987.2 Boxster / Boxster S 2009-12

Crankcase housing (Model: A120,A121) 987.2 Boxster / Boxster S 2009-12

Crankcase housing 981 Boxster / Boxster S 2012-16

Crankcase housing 981.SP Boxster Spyder 2016

Belt tensioner / V-belt (Model: A120,A121) 987.2 Boxster / Boxster S 2009-12

Belt tensioner / V-belt 981 Boxster / Boxster S 2012-16

Belt tensioner / V-belt 981.SP Boxster Spyder 2016

crankcase 986 Boxster 1997-04

crankcase single parts 987 Boxster / Boxster S 2005-08

belt tensioner belt drive 996 Boxster 1997-04

belt tensioner, belt drive 987 Boxster / Boxster S 2005-08

crankshaft 986 Boxster 1997-04

crankshaft 987 Boxster / Boxster S 2005-08

Crankshaft (Model: A120,A121) 98.2 Boxster / Boxster S 2009-12

Crankshaft 981 Boxster / Boxster S 2012-16

Crankshaft 981.SP Boxster Spyder 2016

Piston (Model: A120,A121) 987.2 Boxster / Boxster S 2009-12

Piston 981 Boxster / Boxster S 2012-16

Piston 981.SP Boxster Spyder 2016

piston 986 Boxster 1997-04

piston 987 Boxster / Boxster S 2005-08

cylinder head 986 Boxster 1997-04

cylinder head 987 Boxster / Boxster S 2005-08

Cylinder head with: Valves / Cylinder head gasket / Valve cover 981 Boxster / Boxster S 2012-16

Cylinder head with: Valves, Cylinder head gasket and Valve cover 981.SP Boxster Spyder 2016

Cylinder head with: Valves, Cylinder head gasket, Valve cover 987.2 Boxster / Boxster S 2009-12

Cylinder head / Accessories / Valves (Model: A120,A121) 987.2 Boxster / Boxster S 2009-12

Cylinder head / Accessories / Valves 981 Boxster / Boxster S 2012-16

Cylinder head / Accessories / Valves 981.SP Boxster Spyder 2016

Camshaft / Hydraulic tappet / Camshaft adjuster unit 981 Boxster / Boxster S 2012-16

Camshaft / Hydraulic tappet / Camshaft adjuster unit (Model: A120,A121) 987.2 Boxster / Boxster S 2009-12

Camshaft / Hydraulic tappet / Camshaft adjuster unit 981.SP Boxster Spyder 2016

Valve control (Model: A120,A121) 987.2 Boxster / Boxster S 2009-12

Valve control 981 Boxster / Boxster S 2012-16

Valve control 981.SP Boxster Spyder 2016

camshaft driving mechanism 986 Boxster 1997-04

camshaft driving mechanism 987 Boxster / Boxster S 2005-08

oil pump 986 Boxster 1997-04

oil pump tandem pump 987 Boxster / 987 Boxster S 2005-08

Oil pump 981 Boxster / Boxster S 2012-16

Oil pump 981.SP Boxster Spyder 2016

Oil sump 981 Boxster / Boxster S 2012-16

Oil sump 981.SP Boxster Spyder 2016

Oil sump 987.2 Boxster / Boxster S 2009-12

Engine lubrication (Model: A120,A121) 987.2 Boxster / Boxster S 2009-12

Engine lubrication 981 Boxster / Boxster S 2012-16

Engine lubrication 981.SP Boxster Spyder 2016

Crankcase housing / Bleeding / Tank ventilation / Vacuum pump 981 Boxster / Boxster S 2012-16

Crankcase housing / Bleeding / Tank ventilation / Vacuum pump 981.SP Boxster Spyder 2016

Crankcase housing / Bleeding / Tank ventilation / Vacuum pump 987.2 Boxster / Boxster S 2009-12

engine lubrication 986 Boxster 1997-04

engine lubrication 987 Boxster M96.25 and 987 Boxster S M96.26 UPTO 2006

engine lubrication 987 Boxster M97.20 and 987 Boxster S M97.21/22 2007-08

crankcase bleeding 986 Boxster 1997-04

crankcase bleeding 987 Boxster / Boxster S 2005-08

water pump, thermostat housing 986 Boxster 1997-04

water pump, thermostat housing 987 Boxster / Boxster S 2005-08

Coolant pump / Thermostat housing (Model: A120,A121) 987.2 Boxster / Boxster S 2009-12

Coolant pump / Thermostat housing 981 Boxster / Boxster S 2012-16

Coolant pump / Thermostat housing 981.SP Boxster Spyder 2016

Assembly carrier / Water pipe (Model: A120,A121) 987.2 Boxster / Boxster S 2009-12

Assembly carrier / Water pipe 981.SP Boxster Spyder 2016

Assembly carrier / Water pipe981 Boxster / Boxster S 2012-16

Connection / Water pipe / Control / Water cooling 981 Boxster / Boxster S 2012-16

Connection / Water pipe (Model: A120,A121) 987.2 Boxster / Boxster S 2009-12

Connection / Water pipe / Control / Water cooling 981.SP Boxster Spyder 2016

Water cooling 2 (Model: A120,A121) 987.2 Boxster/ Boxster 2009-12

Water cooling 981 Boxster / Boxster S 2012-16

Water cooling 981.SP Boxster Spyder 2016

Water cooling / Radiator / Fan 981.SP Boxster Spyder 2016

Water cooling / Radiator / Fan 982 Boxster / Boxster S 2012-16

Water cooling 3 (Model: A120,A121) 987.2 Boxster / Boxster S 2009-12

Center radiator (PR:153) 981 Boxster / Boxster S 2012-16

Radiator Center (Model: A121,A120+ PR:250,183, 480) 987.2 Boxster / Boxster S 2009-12

Radiator Center 981.SP Boxster Spyder 2016

Coolant cooling system (Model: A120,A121) 987.2 Boxster / Boxster S 2009-12

Water cooling / Water reservoir / Oil inlet 981 Boxster / Boxster S 2012-16

Water cooling / Water reservoir / Oil inlet 981 Boxster / Boxster S 2012-16

Water cooling / Water reservoir / Oil inlet 981.SP Boxster Spyder 2016

Water cooling 4 / Service flap (Model: A120,A121) 987.2 Boxster / Boxster S 2009-12

water cooling - 1 - for 987 Boxster / Boxster S 2005-08

water cooling 1 for 986 Boxster 1997-04

water cooling - 2 - for 986 Boxster 1997-04

water cooling - 2 - For 987 Boxster / Boxster S 2005-08

water cooling - 3 - for 986 Boxster 1997-04

water cooling - 3 - for 987 Boxster / Boxster S 2005-08

radiator centre 986 Boxster S (M96.26/21/22) I249 Tiptronic Transmission 2005-08

radiator centre 986 Boxster S 3.2L (M008) 2000 ONWARDS

water cooling - 4 - for 986 Boxster 1997-04

water cooling - 4 - for 987 Boxster / Boxster S 2005-06

water cooling - 4 - for 987 Boxster / Boxster S 2007-08

water cooling - 4 - Serviceschale for 987 Boxster / Boxster S 2007-08

air cleaner 986 Boxster 1997-04

air cleaner 987 Boxster / Boxster S 2005-08

Air filter (Model: A120,A121) 987.2 Boxster / Boxster S 2009-12

Air filter 981.SP Boxster Spyder 2016

throttle body 986 Boxster / Boxster S 2005-08

throttle body 986 Boxster 1997-04

Fuel collection pipe / High pressure pump (Model: A121) 987.2 Boxster S 3.4L 2009-12

Fuel collection pipe / High pressure pump (Model: A121) 987C.2 Cayman 3.4L 2009-12

Fuel collection pipe / High pressure pump 981 Boxster / Boxster S 2012-16

Fuel collection pipe (Model: A120) 987.2 Boxster 2.9L 2009-12

Intake air distributor / Throttle valve adapter (Model: A120,A121) 987.2 Boxster / Boxster S 2009-12

Intake air distributor / Throttle valve adapter 981 Boxster / Boxster S 2012-16

Intake air distributor / Throttle valve adapter 981.SP Boxster Spyder 2016

Vacuum system / Engine 981 Boxster / Boxster S 2012-16

Vacuum system / Engine 981.SP Boxster Spyder 2016

fuel collection pipe 987 Boxster / Boxster S 2005-08

fuel collection pipe 986 Boxster 1997-04

intake distributor 986 Boxster 1997-04

intake distributor 987 Boxster / Boxster S 2005-08

Air injection (Model: A120) 987.2 Boxster 2.9L 2009-12

air injection 986 Boxster 2.5L (M96.20) UPTO 1999

air injection 987 Boxster / Boxster S 2005-08

air injection for 986 Boxster 2.7L (M96.23) 2000-05 and 986 Boxster S 3.2L (M96.21/22/24) 2000-04

engine suspension 986 Boxster 1997-04

engine suspension 987 Boxster / Boxster S 2005-08

Engine suspension (Model: A120,A121) 987.2 Boxster / Boxster S 2009-12

Engine suspension 981 Boxster / Boxster S 2012-16

Engine suspension 981.SP Boxster Spyder 2016

Fuel collection pipe / High pressure pump 981.SP Boxster Spyder 2016 - PORSCHE
