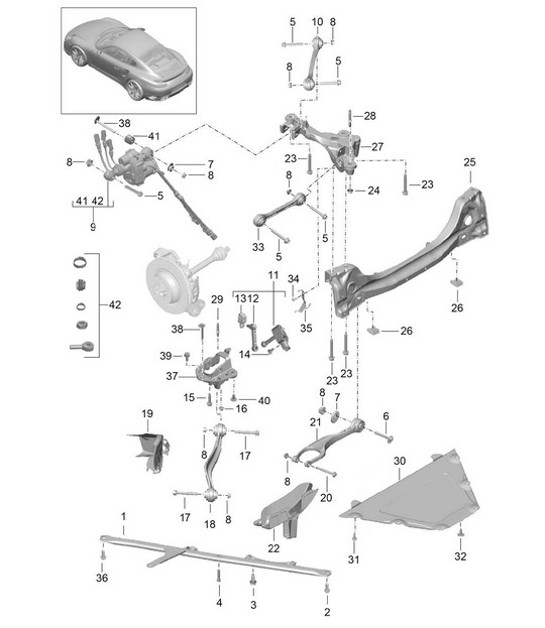

Rear axle / Side part / Carrier / Guide 991 Turbo >>2016 - PORSCHE
Click the image numbers to view product info

No | Part No | Desc | Note | Model |
---|---|---|---|---|
1 | 99133108107 | Brace | left | |
1 | 99133108307 | Brace | left | Cabrio |
1 | 99133108207 | Brace | right | |
1 | 99133108407 | Brace | right | Cabrio |
2 | WHT008676 | Hexagon bolt | AM 12 X 1,5 X 45 | |
3 | N0195308 | Hexagon bolt | M8 X 25 | Cabrio |
4 | 99951004601 | Socket head bolt | M 10 X 45 | |
5 | 9A700867700 | Hexagon bolt | M 12 X 1,5 X 80 | |
6 | 99733121702 | Eccentric bolt | ||
7 | WHT007492 | eccentric washer | PR:470 | |
8 | 99908444501 | Locknut | M 12 X 1,5 | |
9 | 99133105734 | Track rod Steering Rear axle | left | PR:470 |
9 | 99133105834 | Track rod Steering Rear axle | right | PR:470 |
10 | 9P1505237B | Guide | upper | |
11 | 99133302104 | Level sensor | PR:352,475 | |
12 | 99133332700 | connecting rod | PR:352,475 | |
14 | N10485703 | Hexagon socket flat head bolt | M 5 X 12 | PR:352,475 |
15 | 99907284101 | Bolt with washer | AM 10 X 50 | |
16 | PAF008868 | Hexagon nut M 10 | ||
17 | PAF008675 | Hexagon bolt | AM 12 X 1,5 X 90 | |
18 | 9P1505223B | Guide D >> - MJ 2016 | left lower | PR:-IY2,-450 |
18 | 9P1505223B | Guide D >> - MJ 2016 | left lower | PR:-IY2,450 |
18 | 9P1505223B | Guide D - MJ 2016>> | left lower | PR:IY2 |
18 | 9P1505224B | Guide D >> - MJ 2016 | right lower | PR:-IY2,-450 |
18 | 9P1505224B | Guide D >> - MJ 2016 | right lower | PR:-IY2,450 |
18 | 9P1505224B | Guide D - MJ 2016>> | right lower | PR:IY2 |
19 | 9P1615457G | Spoiler Only for Guide 991.331.043.03 D >> - MJ 2016 | left | PR:-IY2,-450 |
19 | 9P1615457G | Spoiler Only for Guide 991.331.043.20 D - MJ 2016>> | left | PR:IY2,-450 |
19 | 9P1615457H | Spoiler Only for Guide 991.331.043.03 D >> - MJ 2016 | left | PR:-IY2,450 |
19 | 9P1615457H | Spoiler Only for Guide 991.331.043.20 D - MJ 2016>> | left | PR:IY2,450 |
19 | 9P1615458G | Spoiler Only for Guide 991.331.044.03 D >> - MJ 2016 | right | PR:-IY2,-450 |
19 | 9P1615458G | Spoiler Only for Guide 991.331.044.20 D - MJ 2016>> | right | PR:IY2,-450 |
19 | 9P1615458H | Spoiler Only for Guide 991.331.044.03 D >> - MJ 2016 | right | PR:-IY2,450 |
19 | 9P1615458H | Spoiler Only for Guide 991.331.044.20 D - MJ 2016>> | right | PR:IY2,450 |
20 | 99907293001 | Hexagon bolt M 12 X 1,5 X 105 | ||
21 | 9P1505311 | Wishbone | lower | |
22 | 99133148301 | Spoiler Guide | left lower | |
22 | 99133148401 | Spoiler Guide | right lower | |
23 | PAF008735 | Hexagon bolt | M 12 X 1,5 X 95 | |
24 | N90916701 | Hexagon collar nut self-locking | M 12 X 1,5 | |
25 | 99133126106 | Cross member | ||
26 | N91242501 | panel nut 4,8 | ||
27 | 99133115111 | Side part | left | |
27 | 99133115211 | Side part | right | |
28 | WHT008655 | Threaded pin | M 12 X 1,5 | |
29 | PAF008654 | Threaded pin | M 10 X 1,5 | |
30 | 99133107003 | Bracket | Cabrio | |
31 | 90037818001 | Hexagon bolt | AM 8 X 25 | |
32 | 9A700769800 | panel screw | 4,8 X 16 | |
33 | 9P1505397A | Wishbone | upper | |
34 | PAF100829 | Hexagon bolt | MM 6 X 16 | |
34 | N90999502 | Hex collared bolt | MM 6 X 25 | |
35 | 99160940702 | Bracket | left | |
35 | 99160940802 | Bracket | right | |
36 | 99907344301 | Bolt with washer | M 12 X 1,5 X 40 | |
37 | 99133132903 | Support Guide | ||
38 | 97034121700 | Eccentric bolt | PR:470 | |
39 | PAF008863 | Bolt with washer | M8 X 25 | Cabrio |
40 | N10700901 | Spreader rivet | Coupe | |
41 | 99133137500 | Rubber bush Steering Rear axle | PR:470 | |
42 | 99133152100 | Assembly kit Steering Rear axle comprising: Bellows / ball joint / Locknut / clamp | PR:470 |
