Other diagrams
101-00
replacement engine (ready for installation) 997 GT3 M97.76 2007-09
101-00
replacement engine ready for installation for 997.1 M97.70 TURBO 2007-09 and 997.1 M97.70 I101 2008 ONWARDS
101-00
replacement engine: without drive plate tiptronic, without flywheel manual transmission, without compressor for 997.1 M96.05 3.6L COUPE / CABRIO and 997.1 M97.01 3.8L CABRIO S / COUPE S 2005-08
101-05
crankcase for 997.1 M96.05 3.6L COUPE / CABRIO and 997.1 M97.01 3.8L CABRIO S / COUPE S 2005-08
101-05
crankcase left 997 GT3 M97.76 2007-09
101-05
crankcase left for 997.1 TURBO/GT2 M97.70 2007-09 and 997.1 GT2 RS M97.70 2011
101-06
crankcase left 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
101-10
belt tensioner and belt drive for 997.1 M96.05 3.6L COUPE / CABRIO and 997.1 M97.01 3.8L CABRIO S / COUPE S 2005-08
101-10
crankcase right for 997.1 TURBO/GT2 M97.70 2007-09 and 997.1 GT2 RS M97.70 2011
101-10
crankcase right 997 GT3 M97.76 2007-09
101-11
crankcase right 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
101-15
belt tensioner and belt drive for 997.1 TURBO/GT2 M97.70 2007-09 and 997.1 GT2 RS M97.70 2011
101-15
belt tensioner and belt drive 997 GT3 M97.76 2007-09
101-16
belt tensioner and belt drive 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
102-00
crankshaft 997 GT3 M97.76 2007-09
102-00
crankshaft for 997.1 M96.05 3.6L COUPE / CABRIO and 997.1 M97.01 3.8L CABRIO S / COUPE S 2005-08
102-00
crankshaft for 997.1 TURBO/GT2 M97.70 2007-09 and 997.1 GT2 RS M97.70 2011
102-01
crankshaft 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
102-05
cylinder with piston 997 GT3 M97.76 2007-09
102-05
cylinder with piston for 997.1 TURBO/GT2 M97.70 2007-09 and 997.1 GT2 RS M97.70 2011
102-05
piston for 997.1 M96.05 3.6L COUPE / CABRIO and 997.1 M97.01 3.8L CABRIO S / COUPE S 2005-08
102-06
cylinder with piston 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS M97.74 2011
103-00
cylinder head for 997.1 TURBO/GT2 M97.70 2007-09 and 997.1 GT2 RS M97.70 2011
103-00
cylinder head 997 GT3 M97.76 2007-09
103-00
cylinder head for 997.1 M96.05 3.6L COUPE / CABRIO and 997.1 M97.01 3.8L COUPE S / CABRIO S 2005-08
103-01
cylinder head 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
103-05
chain case and chain adjuster 997 GT3 M97.76 2007-09
103-05
chain case and chain adjuster for 997.1 TURBO/GT2 M97.70 2007-09 and 997.1 GT2 RS M97.70 2011
103-06
chain case and chain adjuster 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
103-10
camshaft driving mechanism for 997.1 M96.05 3.6L COUPE / CABRIO and 997.1 M97.01 3.8L COUPE S / CABRIO S 2005-08
103-10
camshaft housing 997 GT3 M97.76 2007-09
103-10
camshaft housing for 997.1 TURBO/GT2 M97.70 2007-09 and 997.1 GT2 RS M97.70 2011
103-11
camshaft housing 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
103-15
valve control 997 GT3 M97.76 2007-09
103-15
valve control for 997.1 TURBO/GT2 M97.70 2007-09 and 997.1 GT2 RS M97.70 2011
103-16
valve control 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
104-00
oil pump for 997.1 TURBO/GT2 M97.70 2007-09 and 997.1 GT2 RS M97.70 2011
104-00
oil pump 997 GT3 M97.76 2007-09
104-00
oil pump, tandem pump for 997.1 M96.05 3.6L COUPE / CABRIO and 997.1 M97.01 3.8L COUPE / CABRIO 2005-08
104-01
oil pump 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
104-05
engine lubrication for 997.1 M96.05 3.6L COUPE / CABRIO and 997.1 M97.01 3.8L COUPE S / CABRIO S 2005-08
104-05
engine lubrication oil tank for 997.1 TURBO/GT2 M97.70 2007-09 and 997.1 GT2 RS M97.70 2011
104-05
engine lubrication, oil tank 997 GT3 M97.76 2007-09
104-06
lines oil tank 997 GT3 M97.76 2007-09
104-07
engine lubrication, oil tank 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
104-08
lines oil tank 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 2011
104-10
crankcase bleeding 997.1 M96.05 3.6L COUPE / CABRIO 2005-08
104-10
oil filter bracket for 997.1 TURBO/GT2 M97.70 2007-09 and 997.1 GT2 RS M97.70 2011
104-10
oil filter, bracket 997 GT3 M97.76 2007-09
104-11
crankcase bleeding 997.1 M97.01 3.8L COUPE / CABRIO 2005-08
104-20
oil supply return line for 997.1 TURBO/GT2 M97.70 2007-09 and 997.1 GT2 RS M97.70 2011
104-20
oil supply return line 997 GT3 M97.76 2007-09
104-21
oil supply return line 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
105-00
water pump and thermostat housing for 997.1 M96.05 3.6L COUPE / CABRIO and 997.1 M97.01 3.8L COUPE S / CABRIO S 2005-08
105-00
water pump, water pump housing for 997.1 TURBO/GT2 M97.70 2007-09 and 997.1 GT2 RS M97.70 2011
105-00
water pump, water pump housing 997 GT3 M97.76 2007-09
105-01
water pump, water pump housing 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
105-03
lines heating 997 GT3 M97.76 2007-09
105-03
lines heating I480 (6-speed manual transmission) for 997.1 M96.05 3.6L COUPE / CABRIO and 997.1 M97.01 3.8L COUPE S / CABRIO S 2005-08
105-03
lines heating turbo for 997.1 TURBO/GT2 M97.70 2007-09 and 997.1 GT2 RS M97.70 2011
105-04
lines heating 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS M97.74 2011
105-04
lines heating GT2 for 997.1 GT2 M97.70 I101 (Special GT2 engine parts) 2007-09
105-04
lines heating I249 (Tiptronic transmission) for 997.1 M97.01 3.6L COUPE / CABRIO and 997.1 M96.05 3.8L COUPE S / CABRIO S 2005-08
105-05
water cooling - 1 - for 997 GT3 M97.76 2007-09
105-05
water cooling - 1 - for 997.1 M96.05 3.6L COUPE / CABRIO and 997.1 M97.01 3.8L COUPE S / CABRIO S 2005-08
105-05
water cooling - 1 - for 997.1 TURBO 2007-09
105-06
water cooling - 1 - for 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
105-10
water cooling - 2 - for 997 GT3 M97.76 2007-09
105-10
water cooling - 2 - for 997.1 M96.05 3.6L COUPE / CABRIO and 997.1 M97.01 3.8L COUPE S / CABRIO S 2005-08
105-10
water cooling - 2 - for 997.1 TURBO/GT2 M97.70 2007-09 and 997.1 GT2 RS M97.70 2011
105-15
water cooling - 3 - for 997 GT3 M97.76 2007-09
105-15
water cooling - 3 - for 997.1 M96.05 3.6L COUPE / CABRIO and 997.1 M97.01 3.8L COUPE S / CABRIO S 2005-08
105-15
water cooling - 3 - for 997.1 TURBO 2007-05
105-16
water cooling - 3 - for 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 2011
105-17
radiator centre 997 GT3 M97.76 2007-09
105-17
radiator centre for 997.1 TURBO 2007-09
105-17
radiator centre I249 (Tiptronic transmission) for 997.1 M96.05 3.6L COUPE / CABRIO and 997.1 M97.01 3.8L COUPE S / CABRIO S 2005-08
105-18
radiator centre 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
105-20
water cooling - 4 - for 997 GT3 M97.76 2010-11
105-20
water cooling - 4 - for 997.1 M96.05 3.6L COUPE / CABRIO and 997.1 M97.01 3.8L COUPE S / CABRIO S 2005-08
105-20
water cooling - 4 - for 997.1 TURBO 2007-09
105-21
water cooling - 4 - for 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
106-00
air cleaner 997 GT3 M97.76 2007-09
106-00
air cleaner for 997.1 M97.01 3.8L COUPE S / CABRIO S 2005-08
106-00
air cleaner for 997.1 TURBO/GT2 M97.70 2007-09 and 997.1 GT2 RS M97.70 2011
106-01
air cleaner 997 GT3 / GT3 RS M97.77 2010-11
106-01
air cleaner for 997.1 M97.01 3.8L COUPE S / CABRIO S 2005-08
107-00
throttle body 997 GT3 M97.76 2007-09
107-00
throttle body for 997.1 M96.05 3.6L COUPE / CABRIO and 997.1 M97.01 3.8L COUPE S / CABRIO S 2005-08
107-00
throttle body for 997.1 TURBO/GT2 M97.70 2007-09 and 997.1 GT2 RS M97.70 2011
107-05
fuel collection pipe 997 GT3 M97.76 2007-09
107-05
fuel collection pipe for 997.1 M96.05 3.6L COUPE / CABRIO and 997.1 M97.01 3.8L COUPE S / CABRIO S 2005-08
107-05
fuel collection pipe for 997.1 TURBO/GT2 M97.70 2007-09 and 997.1 GT2 RS M97.70 2011
107-06
fuel collection pipe 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
107-10
intake distributor 997 GT3 M97.76 2007-09
107-10
intake distributor for 997.1 TURBO/GT2 M97.70 2007-09 and 997.1 GT2 RS M97.70 2011
107-10
intake distributor
107-11
intake distributor 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
107-20
turbocharging for 997.1 TURBO/GT2 M97.70 2007-09 and 997.1 GT2 RS M97.70 2011
108-05
air injection for 997.1 M96.05 3.6L COUPE / CABRIO and 997.1 M97.01 3.8L COUPE S / CABRIO S 2005-08
108-05
air injection 997 GT3 M97.76 2007-09
108-05
air injection for 997.1 TURBO/GT2 M97.70 2007-09 and 997.1 GT2 RS M97.70 2011
108-06
air injection 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011
109-00
engine suspension for 997.1 M96.05 3.6L COUPE / CABRIO and 997.1 M97.01 3.8L COUPE S / CABRIO S 2005-08
109-00
engine suspension 997 GT3 M97.76 2007-09
109-00
engine suspension for 997.1 TURBO/GT2 M97.70 2007-09 and 997.1 GT2 RS M97.70 2011
109-01
engine suspension 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011

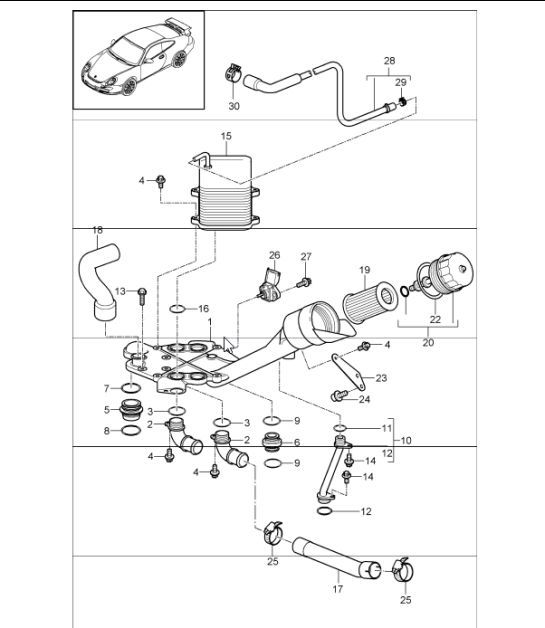

oil filter, bracket 997 GT3 / GT3 RS M97.77 2010-11 and 997 GT3 RS 4.0 M97.74 2011 - PORSCHE
Click the image numbers to view product info
104-11
