Porsche > Diagrams > 964 (911) (1989-1994) > Wheels, Brakes >

disc brake rear axle 964 CARRERA 2 and TURBO-LOOK CARRERA 2 1992 ONWARDS

disc brake rear axle 964 CARRERA 2 and TURBO-LOOK CARRERA 2 1992 ONWARDS - PORSCHE

Click the image numbers to view product info

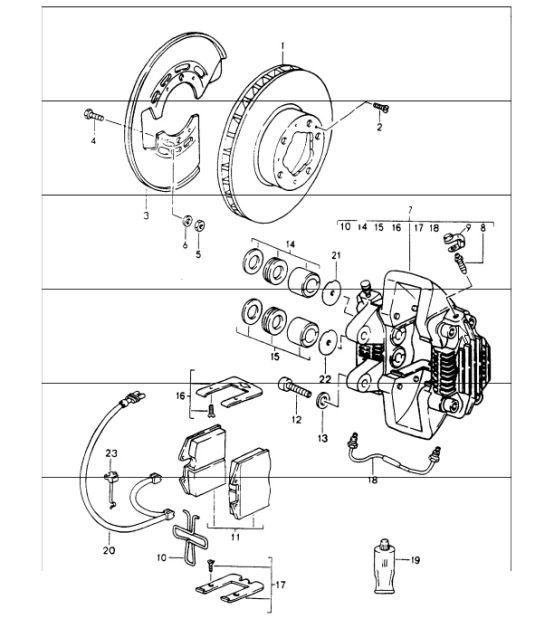

Diagram 603-01 Porsche 964 (911) (1989-1994) Wheels, Brakes SKU: 95135204102, brake disc,SKU: 96535204100, brake disc,SKU: 96535204101, brake disc,SKU: 96535204200, brake disc,SKU: 96535204201, brake disc SKU: 90026904701, countersunk-head screw am 6 x 12 SKU: 96435280100, protective plate SKU: 90011910102, combination screw m 6 x 20 SKU: 90091001001, lock nut SKU: 90015100603, washer a 6,4 SKU: 92835242103, fixed calliper without pad,SKU: 96535242102, fixed calliper without pad,SKU: 92835242203, fixed calliper without pad,SKU: 96535242202, fixed calliper SKU: 93035191900, ventilation valve SKU: 93035192701, dust boot SKU: 95135295000, expanding spring SKU: 96435193903, brake pad repair set,SKU: 96535293904, brake pad repair set SKU: 90006717003, pan-head screw m 12 x 1,5 x 40,SKU: 90008214501, hexagon-head bolt m 12x1,5x37 SKU: 90002801403, spring washer SKU: 95135291911, gasket set 30 mm $,SKU: 96535291910, gasket set 34 mm $,SKU: 95135291911, gasket set 30 mm$ SKU: 95135291911, gasket set 30 mm $,SKU: 95135291910, gasket set 28 mm $,SKU: 95135291911, gasket set 30 mm$ SKU: 99335295901, repair kit spring plate SKU: 99335295900, repair kit spring plate SKU: 95135297100, connecting line SKU: 00004311700, brake cylinder paste 1 50-g tube SKU: 96461236502, warning contact SKU: 99635208600, damping plate 30 mm $,SKU: 96535209601, damping plate 34 mm$,SKU: 99635208600, damping plate 30 mm$ SKU: 99635208600, damping plate 30 mm $,SKU: 99635208602, damping plate 28 mm $,SKU: 99635208600, damping plate 30 mm$ SKU: 92861236100, cable holder 603-01
