chain case, camshaft housing 911 TURBO 1975-77 - PORSCHE

Click the image numbers to view product info

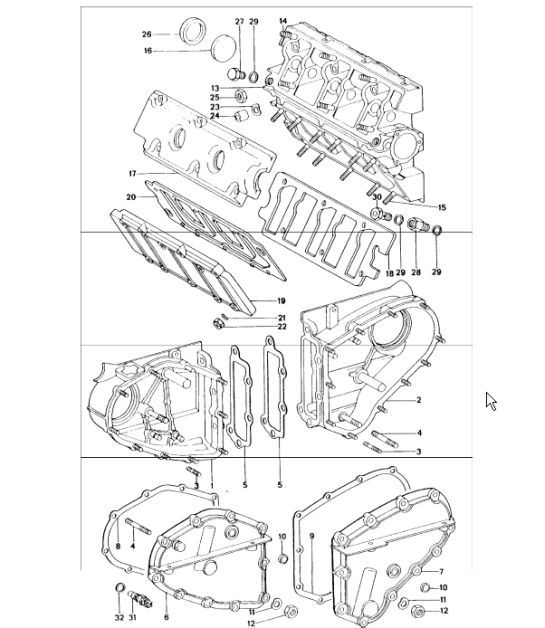

Diagram 103-05 Porsche 911 & 912 (1965-1989) EngineSKU: 93010506102, chain caseSKU: 93010506201, chain case,SKU: 99906204602, stud bm 8 x 65,SKU: 99906205202, stud bm 8 x 42SKU: 99906210203, stud bm 6 x 22SKU: 99906210203, stud bm 6 x 22SKU: 99906204103, stud bm 8 x 50,SKU: 99906225502, stud bm 8 x 60SKU: 99906204103, stud bm 8 x 50,SKU: 99906225502, stud bm 8 x 60SKU: 93010519306, gasketSKU: 93010519306, gasketSKU: 93010506301, lidSKU: 93010506402, part 1 of 3 - lid,SKU: 90012300730, part 2 of 3 - sealing ring,SKU: N0161554, part 3 of 3 - screw plugSKU: 93010519103, gasketSKU: 93010519204, gasketSKU: 90003600803, lid 15SKU: 90003600803, lid 15SKU: 90003101130, washer 6,4 x 11 al,SKU: 90015103530, washer b 6,4 x 18 al,SKU: 90003101430, washer 8,4SKU: 90003101130, washer 6,4 x 11 al,SKU: 90015103530, washer b 6,4 x 18 al,SKU: 90003101430, washer 8,4SKU: 90003101430, washer 8,4SKU: 90091004709, hexagon nut m 6,SKU: 90007606402, hexagon nut m 8SKU: 90091004709, hexagon nut m 6,SKU: 90007606402, hexagon nut m 8SKU: 90007606402, hexagon nut m 8SKU: 93010502109, part 1 of 5 - camshaft housing,SKU: 90110536102, part 2 of 5 - intermediate piece,SKU: 90110537401, part 3 of 5 - screw plug,SKU: 90012300500, part 4 of 5 - sealing ring,SKU: 93010516100, part 5 of 5 - lid,SKU: 93010536200, oil splash tube,SKU: 90110537900, stopper,SKU: 93010516100, lid,SKU: 90110537401, screw plug,SKU: 90110536102, intermediate piece,SKU: 90012300500, sealing ring a 12 x 16SKU: 90110536102, part 2 of 5 - intermediate piece,SKU: 90110536102, intermediate pieceSKU: 90110537401, part 3 of 5 - screw plug,SKU: 90110537401, screw plugSKU: 90012300500, part 4 of 5 - sealing ring,SKU: 90012300500, sealing ring a 12 x 16SKU: 90012300500, part 4 of 5 - sealing ring,SKU: 90012300500, sealing ring a 12 x 16SKU: 90012300500, part 4 of 5 - sealing ring,SKU: 90012300500, sealing ring a 12 x 16SKU: 93010516100, part 5 of 5 - lid,SKU: 93010516100, lidSKU: 90006010501, stud bm 8 x 28SKU: 99906201002, stud bm 8 x 35SKU: 90110511511, lid for camshaft housingSKU: 93010519404, gasket for camshaft housingSKU: 93010511600, lid for camshaft housingSKU: 93010519507, gasket for camshaft housingSKU: 90008400402, hexagon nut m 8SKU: N0122418, spring washer b 8 x 15SKU: 90111127101, nutSKU: 99913401802, banjo bolt a 6SKU: 91161711700, temperature switchSKU: 90012300770, sealing ring a 14 x 18103-05
NoPart NoDescNoteModel
193010506102chain case/L
293010506201chain case/R
-99906204602stud BM 8 X 6575-
-99906205202stud BM 8 X 4275-
399906210203stud BM 6 X 22
499906204103stud BM 8 X 50/R
499906225502stud BM 8 X 60/L
593010519306gasket
693010506301lid/L
793010506402PART 1 of 3 - lid/R
790012300730PART 2 of 3 - sealing ring/R
7N0161554PART 3 of 3 - screw plug/R
893010519103gasket/L
993010519204gasket/R
1090003600803lid 15
1190003101130washer 6,4 X 11 AL
1190015103530washer B 6,4 X 18 AL
-90003101430washer 8,4
1290091004709hexagon nut M 6
-90007606402hexagon nut M 8
1393010502109PART 1 of 5 - camshaft housing
1390110536102PART 2 of 5 - intermediate piece
1390110537401PART 3 of 5 - screw plug
1390012300500PART 4 of 5 - sealing ring
1393010516100PART 5 of 5 - lid
-93010536200oil splash tube
-90110537900stopper
1490006010501stud BM 8 X 28
1599906201002stud BM 8 X 35
1693010516100lid
1790110511511lid for camshaft housing
1893010519404gasket for camshaft housing
1993010511600lid for camshaft housing
2093010519507gasket for camshaft housing
2190003101430washer 8,4
2290008400402hexagon nut M 8
23N0122418spring washer B 8 X 15
2490111127101nut
2590007606402hexagon nut M 8
2790110537401screw plug
2890110536102intermediate piece
2990012300500sealing ring A 12 X 16
3099913401802banjo bolt A 6
3191161711700temperature switch
3290012300770sealing ring A 14 X 18
