air injection 911 CARRERA 930.26 1987-89 - PORSCHE

Click the image numbers to view product info

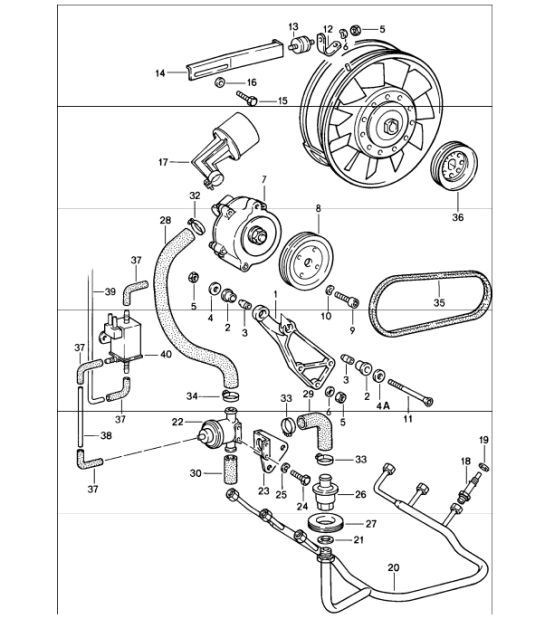

Diagram 108-00 Porsche 911 & 912 (1965-1989) EngineSKU: 91111311302, bracketSKU: 91111312100, rubber mountingSKU: 91111312100, rubber mountingSKU: 91111312200, spacer sleeveSKU: 91111312200, spacer sleeveSKU: 90015100802, washer b 8,4SKU: 91111316200, washerSKU: 90007606402, hexagon nut m 8SKU: 90007606402, hexagon nut m 8SKU: 90007606402, hexagon nut m 8SKU: 90002500703, washer a 8,4SKU: 90002500703, washer a 8,4SKU: 93011312200, air pumpSKU: 93011315800, pulleySKU: 90006700803, pan-head screw m 6 x 12SKU: N0122265, spring washer a 6SKU: 90024900602, countersunk-head screw m 8 x 120SKU: 91111312602, retaining bracketSKU: 99970326300, bonded rubber bufferSKU: 91111312502, supportSKU: 90007508503, hexagon-head bolt m 8 x 20SKU: 90022300103, washer 8,4SKU: 91111311702, air cleanerSKU: 91111314504, unionSKU: 90012303320, sealing ring a 10 x 13,5 cuSKU: 91111304302, air tubeSKU: 90012306030, sealing ring a 24 x 29SKU: 93011314701, diverter valveSKU: 93011314601, supportSKU: 99907200501, hexagon-head bolt m 6 x 12SKU: N01152427, washer 6,4SKU: 91111311501, check valveSKU: 91111314600, gasketSKU: 93011313803, hoseSKU: 93011313701, hoseSKU: 93011313902, hoseSKU: 99951203802, hose clamp s27/9SKU: PCG51223702, hose clamp s26/9SKU: PCG51223702, hose clamp s26/9SKU: 99951229602, hose clamp s25/7SKU: 90019200550, narrow v-belt 9,5 x 975SKU: 91110620800, pulleySKU: 9P1129487, moulded hoseSKU: 9P1129487, moulded hoseSKU: 9P1129487, moulded hoseSKU: 9P1129487, moulded hoseSKU: 00004320501, pipe 4 x 1 - 500 mm,SKU: 00004320501, pipe 4 x 1 - 400 mmSKU: 00004320501, pipe 4 x 1 - 500 mm,SKU: 00004320501, pipe 4 x 1 - 400 mmSKU: 91161812300, change-over valve electric108-00
NoPart NoDescNoteModel
191111311302bracket
291111312100rubber mounting
391111312200spacer sleeve
490015100802washer B 8,4
4A91111316200washer
590007606402hexagon nut M 8
690002500703washer A 8,4
793011312200air pump
893011315800pulley
990006700803pan-head screw M 6 X 12
10N0122265spring washer A 6
1190024900602countersunk-head screw M 8 X 120
1291111312602retaining bracket
1399970326300bonded rubber buffer
1491111312502support
1590007508503hexagon-head bolt M 8 X 20
1690022300103washer 8,4
1791111311702air cleaner
1891111314504union
1990012303320sealing ring A 10 X 13,5 CU
2091111304302air tube
2190012306030sealing ring A 24 X 29
2293011314701diverter valve
2393011314601support
2499907200501hexagon-head bolt M 6 X 12
25N01152427washer 6,4
2691111311501check valve
2791111314600gasket
2893011313803hose
2993011313701hose
3093011313902hose
3299951203802hose clamp S27/9
33PCG51223702hose clamp S26/9
3499951229602hose clamp S25/7
3590019200550narrow v-belt 9,5 X 975
3691110620800pulley
379P1129487moulded hose
3800004320501pipe 4 X 1 - 500 MM
3900004320501pipe 4 X 1 - 400 MM
4091161812300change-over valve electric
